Description

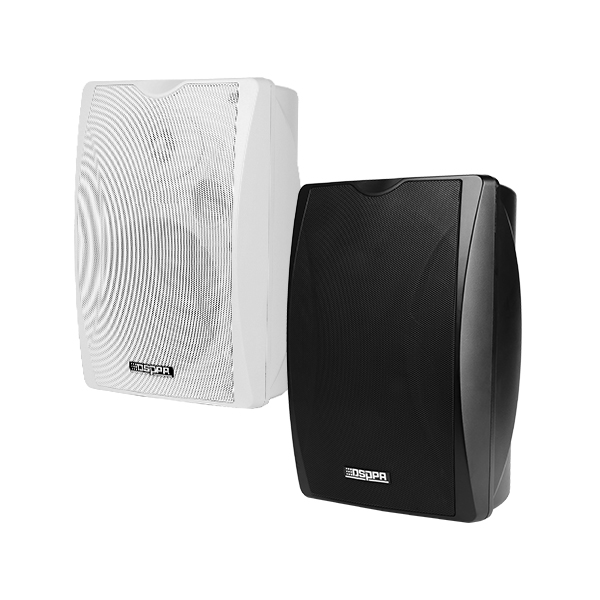

The DSP8062/DSP8063/DSP8064 are wall mount speakers built-in 70v/100v transformer. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.

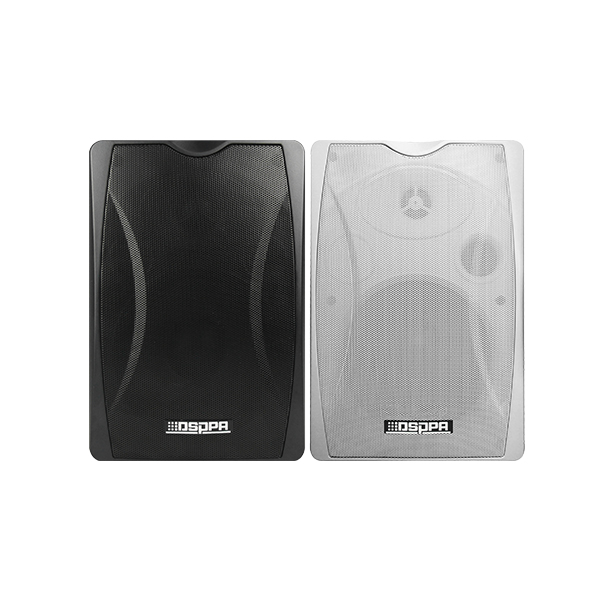

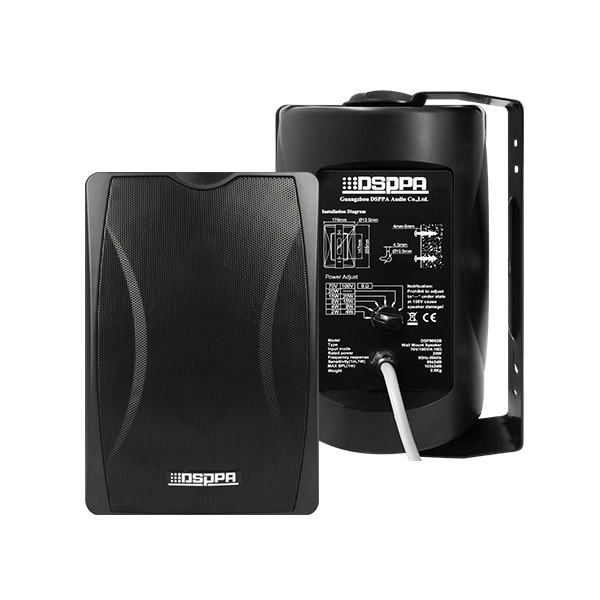

Metal grille and ABS enclosure of black color, long-term durability, never out of shape and fading; high sensitivity, clear and sonorous sound. Easy and secure wall mount installation by hanging holes.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
SPECIFICATION
| Model | DSP8062 | DSP8063 | DSP8064 | |
| Speaker Unit | 4″×1, 1″×1 | 5″×1, 1″×1 | 6.5″×1, 1″×1 | |
| Rated Power | 20W | 30W | 40W | |
| Input | Constant voltage | 70/100V | ||
| Constant resistance | 8Ω | |||
| Sensitivity(1M,1W) | 90±2dB | 90±2dB | 91±2dB | |
| Max SPL(1M) | 103±2dB | 105±2dB | 107±2dB | |
| Freq. Resp | 95Hz-20kHz | 80Hz-20kHz | 65Hz-20kHz | |
| Weight | 2.6 kg | 3.2 kg | 4.6kg | |
| Dimension(H×W×D) | 255×176×170mm | 280×194×185mm | 310×215×203mm | |
