Description

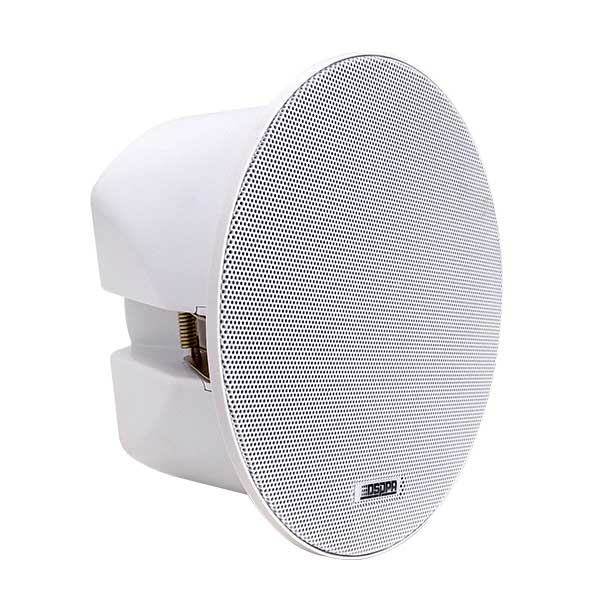

The ceiling speaker DSP602EN adopts the fashionable thin-edge plane big cylinder and the carbon alloy aluminum mesh design with the RAL white coating so as to integrate with any indoor place perfectly. Equipped with a 6.5”unit, full-range designed loudspeaker with magnetic circuit encapsulated with special engineering plastic process, and the drum paper formed with tripping and hot pressing of algae salved organisms, for the purpose of super-strong reproduction of voice and music. Equipped with fireproof Hood, enhance the protection of electric cable connection terminal.
Specification
| Model | DSP602EN |
| Standards | EN54-24:2008 Loudspeaker for voice alarm system for fire detection and fire alarm system |
| Environmental class EN54-24 | Type A, indoor places |
| Protection grade EN60529 | IP21C |
| Ways/Speakers/Type | 1 way, double cone full range Ø 156mm, 100V system |
| Transformer | 100V, 6W-3W – 1.5W |
| In axis frequency response (±7dB) | 90-18000Hz |
| Sensitivity (@1m, 1W) | 91 dBSPL (200Hz – 10kHz pink noise) |
| Coverage angle 1kHz (HxV) | 180° |
| SPL max (@1m, Pmax) | 99 dB (200Hz – 10kHz pink noise) |
| Nominal power | 6W |
| Impedance at 1000Hz | 180Ω (6W), 3100Ω (3W), 9400Ω (1.5W) |
| Dimensions | Ø 190mm – P = 102mm |
| Hole diameter | Ø 168-172mm |
| Weight | 1.0kg |
| Material | Flame retarding ABS |
| Connections | Ceramic connector and thermal fuse |
